Transparent LED Display

Transparent LED Display, 2.0mm ultra-thin, 90–95% transparency, only 1.3 kg/m² in weight. Self-adhesive direct mounting on glass — no steel framing, no drilling required. Ideal for retail storefronts, building facades, mall atriums, airports, and exhibition halls.

Pixel pitch P5–P20 available, up to 95% transparency
Mounts on flat, curved, and arc-shaped glass
UL 94 V1 fire-retardant certified, LED lifespan ≥ 100,000 hours
Up to 4,000 nits brightness, 3,840 Hz flicker-free refresh rate

Contact Us

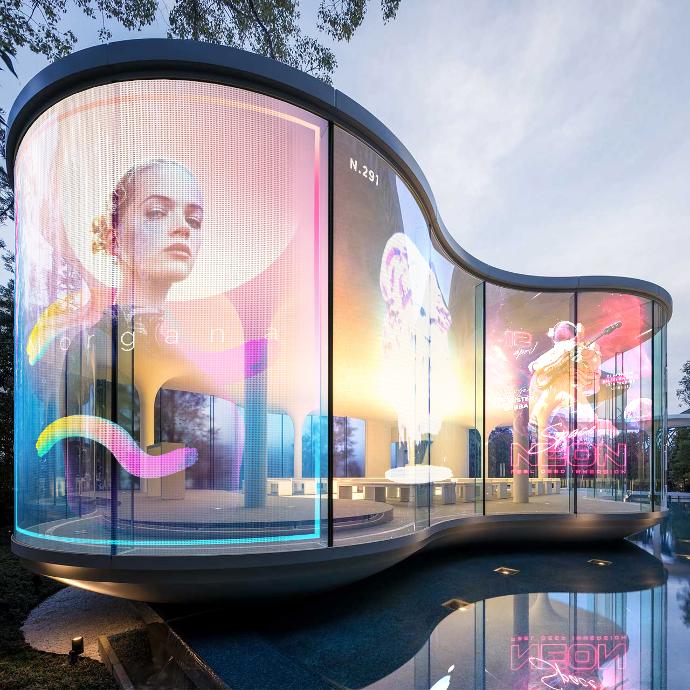

Transparent LED Display building facade application

Why Choose Our Transparent LED Display

Ultra-Thin Flexible Design

Just 2.0 mm thick and 1.3 kg/m² in weight, it flexes to fit curved glass surfaces and adapts to irregular building facades — with zero added structural load.

Ultra-High Transparency 90%–95%

Mini LED chips (1313 / 1515 / 2121) paired with a gridless circuit design deliver 90% transparency at P5 and up to 95% at P20 — glass daylighting and visual clarity remain virtually unaffected.

High Brightness & High Contrast

The 1313 chip version reaches 2,500 nits, and the 2121 version up to 4,000 nits — bright enough for semi-outdoor, high-glare environments. With 16-bit grayscale and a 3,840 Hz refresh rate, footage stays completely flicker-free on camera.

No Steel Framing — 3-Step Installation

No drilling, welding, or steel framing needed. Step 1 clean the glass → Step 2 peel the film, apply, and smooth out air bubbles → Step 3 connect the power control box — done. Adhesion strength builds over time, curing fully within 8–24 hours.

Long-Lasting: 5+ Year Lifespan

LED lifespan of ≥ 100,000 hours, UL 94 V1 fire-retardant certified, and UV-resistance tested for 5,000 hours with no yellowing — appearance holds up for 5–10 years.

Continuous Playback — Full-Series Protection

1313, 1515, and 2121 chip types all support continuous playback technology, so a single LED failure won't affect the rest of the row. A patented independent LED driver IC delivers higher reliability than competing products that only support 2121.

Product Specifications

Model	Pixel Pitch	Module Size (mm)	Transparency	Brightness (nits)	Pixel Density (/m²)	Power Consumption (Avg/Peak)
P5	5 × 5	320 × 1000	90%	2,500	40,000	200 / 600 W/m²
P6.25	6.25 × 6.25	400 × 1000	92%	2,000 / 4,000	25,600	200 / 600 W/m²
P8	8 × 8	400 × 1000	92%	2,000 / 4,000	15,625	200 / 600 W/m²
P10	10 × 10	400 × 1000	94%	2,000 / 4,000	10,000	200 / 600 W/m²
P15	15 × 15	390 × 990	94%	2,000 / 4,000	4,356	200 / 600 W/m²
P20	20 × 20	1000 × 400	95%	2,000 / 4,000	2,500	200 / 600 W/m²

Thickness: 2.0 mm　｜　Weight: 1.3 kg/m²
Grayscale: 16-bit　｜　Refresh Rate: 3,840 Hz
Viewing Angle: 160° (Horizontal & Vertical)
LED Lifespan: ≥ 100,000 hours
Operating Temperature: −20°C ~ +55°C　｜　Humidity: 10–90% RH
Control System: Nova / Colorlight (O Series)

Selection Guide

Pixel Pitch Selection Guide

Choose the ideal model based on viewing distance and application scenario

Model	Transparency	Recommended Viewing Distance	Best-Fit Applications
P5	90%	1–3 m	Boutique retail stores, auto showrooms, close-range interactive displays
P6.25	92%	2–5 m	Mall atriums, exhibition halls, indoor curtain walls
P8	92%	3–8 m	Indoor building facades, exhibition venues, airport terminals
P10	94%	5–15 m	Building exteriors, subway stations, public space advertising
P15	94%	8–20 m	Large building facades, outdoor curtain walls (transparency priority)
P20	95%	10 m+	Extra-large curtain walls, landscape decor (maximum transparency priority)

P5–P8 is best for retail displays; P10–P20 is best for building exteriors. Not sure which spec fits your project? Contact us and describe your application — we'll help you plan it.

Competitive Advantage

TCTL vs. Standard Market Products

Key technical differences that determine long-term reliability

Specification	TCTL Transparent LED Display	Standard Market Products
Module Width	400 mm (fewer seams)	240 mm (more seams)
Film Thickness	2.0 mm	3.0 mm
Grayscale Level	True 16-bit	14-bit
Supported Chip Types	Full range: 1313, 1515, 2121	2121 only
Continuous Playback	Supported across full range	2121 only
LED Bonding Wire	Gold wire	Alloy wire
Fire-Retardant Certification	UL 94 V1 certified	Not certified
Adhesive Properties	Strengthens over time (long-term stable)	Fixed strength, or non-adhesive in some cases

FAQ

Frequently Asked Questions

Q: Will installing the transparent LED film damage the glass?

No. The self-adhesive film can be removed cleanly, leaving no permanent residue and causing no damage to the glass surface. Adhesion strength builds gradually after installation, balancing long-term stability with removability.

Q: Can it be installed on curved glass?

Yes. The flexible substrate supports curved, arc-shaped, and cylindrical glass surfaces, including curved curtain wall panels and cylindrical decorative columns.

Q: Which control systems are compatible?

The O Series standard modules are compatible with Nova and Colorlight control systems; the handheld sample series uses an Onbon controller. Third-party CMS platform integration is available on request — please contact our technical team.

Q: Is it suitable for outdoor installation?

It's suited for semi-outdoor environments (building facades, sheltered exterior walls), with up to 4,000 nits to handle daytime glare and an operating range of −20°C to +55°C. For fully exposed, all-weather environments, please contact us about our customized outdoor version.

Q: How long does the LED film last?

The LED chips are rated for ≥ 100,000 hours. The substrate has passed 5,000 hours of UV-resistance testing with no yellowing, and appearance holds up for 5–10 years under normal use conditions.

Q: How do I request a quote? What information do you need?

Provide the following details for a fast quote:
① Glass dimensions (length × width)
② Installation environment (indoor / semi-outdoor / outdoor)
③ Expected viewing distance
④ Application (advertising, brand display, decoration, etc.)

We'll respond within 24 hours with spec recommendations and a quote.
